Mold in automobiles: comparing injection molds and stamping dies for automotive parts

Mold in automobiles plays a crucial role in manufacturing various car parts. The automotive industry employs advanced techniques such as injection molding and stamping to produce parts efficiently. For instance, approximately 38% of car components are created using injection molds, primarily for lightweight plastic parts like bumpers and dashboard panels. Meanwhile, stamping dies account for about 34% of production, focusing on shaping metal parts such as body panels and chassis components. This evolving landscape highlights how the industry strives to be more innovative and efficient in producing automotive products.

Key Takeaways

• Injection molds create detailed plastic car parts fast and accurately. They make lightweight and strong pieces like dashboards and bumpers.
• Stamping dies shape tough metal parts like door panels and hoods quickly and precisely. This is great for making many parts at once.
• Choosing between injection molding and stamping depends on how complex the part is, the material used, how many parts are needed, and the cost.
• Both methods need careful quality checks. This ensures parts meet strict car standards and work well.
• New designs and automation help makers produce better car parts efficiently. They also try to keep costs low and protect the environment.

Definitions

Injection Molds

Injection molds are special tools used to make plastic parts for cars. These molds have spaces that help spread the material evenly and place inserts correctly. The process starts by melting plastic pellets. Then, the hot plastic is pushed into the mold under high pressure. After it cools, the plastic hardens into precise parts like dashboards and bumpers. The detailed design of injection molds allows for making complex shapes and using different materials. This makes them very important for creating lightweight and strong car parts.

Stamping Dies

Stamping dies are exact tools that shape metal sheets into parts using mechanical force. They work at room temperature, cutting or bending materials without heat. There are different types of stamping dies, like single, compound, progressive, and transfer tools. Each type is used for different production needs. For example, single stamping dies do one job at a time, which is good for making small or large amounts of car panels. Stamping dies are important for making strong parts like body panels and doors. They make up 60%-80% of small metal parts in car manufacturing. Their strong design helps them handle repeated impacts, improving production speed and part accuracy.

Both injection molds and stamping dies are very important in the car industry. They help manufacturers make high-quality parts quickly, supporting new ideas in car design and performance.

Applications in Automotive Parts

Injection Molding Applications

Injection molding is very important for making different car parts. This method is great for creating complex shapes and detailed designs. It works well for parts that need to look good and function well. The table below shows some common car parts made with injection molding:

Injection molding helps makers create lightweight and strong parts. For example, parts under the hood, like battery cases and fuse boxes, need to handle high heat and vibrations. Makers often use materials like polyamide (PA) and polybutylene terephthalate (PBT) for these parts.

Stamping Applications

Stamping dies are key for making strong metal parts in car manufacturing. This method is especially good for making parts that need to be tough and durable. The table below shows some common car parts made with stamping dies:

Makers use stamping for many parts, like airbag system pieces, bushings, and connectors. Stamping gives the strength and stiffness needed for structural parts. This makes it a popular choice for car door panels and hoods.

Advantages and Disadvantages

Injection Molds Pros and Cons

Injection molding has many benefits for car makers. First, it is cost-effective because it produces parts quickly and wastes less material. This method allows for high accuracy and tight tolerances, which means the final products are reliable and of good quality. Here are some main benefits of injection molding:

• High efficiency: Fast cycles mean more parts are made.
• Cost reduction: Making lightweight plastic parts is often cheaper than metal ones.
• Precision manufacturing: Parts can be made with tolerances as close as +/-0.0002.
• Consistent production: All parts are the same, ensuring quality.
• Complex part creation: This method can make detailed designs accurately.
• Material variety: Makers can choose from many materials like polypropylene, ABS, and nylon.

However, injection molding has some downsides. The starting costs can be high because custom tools are needed, making it less affordable for small production runs. There are also challenges like:

• High start-up costs: Custom tools can cost a lot.
• Long lead times: Designing and making molds can take weeks.
• Supply chain issues: Global events can affect material supply, causing delays and higher costs.

Stamping Dies Pros and Cons

Stamping dies have their own pros and cons in making car parts. One big advantage is speed and efficiency. High-speed machines can meet the large needs of the car industry. Key benefits of stamping dies include:

• Consistency and precision: Stamping makes parts with tight tolerances, ensuring they fit well.
• Cost-effectiveness at scale: Even though initial die costs are high, they spread out over millions of parts.
• Versatility: Stamping works with different metals and can create complex shapes.
• Material properties: Cold working during stamping makes parts stronger, allowing for lighter pieces without losing strength.

Despite these benefits, stamping dies have some limits. Tools can wear out or break over time, especially with tougher materials. This means regular maintenance is needed, which can raise costs. Other downsides include:

• High initial tooling costs: Making and keeping dies can be expensive.
• Limited rapid prototyping: Tool development can take time and money.
• Inability to support small production runs: High setup costs make it hard for low-volume production.

Design Impact

Design with Injection Molds

Injection molding greatly improves how designers can create car parts. This method lets them make complex shapes that are hard to achieve with other ways of making parts. For example, injection molding can combine different materials in one part. This means they can create parts that fit specific car models or meet customer needs.

Also, injection molding allows features like hinges, fasteners, and special textures to be built right into the parts. This makes assembly easier and cheaper, which helps the manufacturing process. Being able to add custom textures and finishes directly to parts makes them look better and work well. Overall, injection molding opens up many design options, making lightweight, strong, and very useful car parts with good quality and fast production.

Design with Stamping Dies

Stamping die technology is also important for how complex and detailed car part designs can be. The way stamping dies are made affects how many forming steps are needed, how precise they are, and how materials are handled. For instance, complex shapes with many bends need progressive dies that have multiple stations. This makes the die more complicated and expensive but allows for detailed designs.

Different types of dies, like compound and progressive dies, have different abilities. Compound dies can do many tasks at once, which is great for making lots of complex parts. Progressive dies do tasks one after another across several stations, ensuring quality and detail. However, getting tight tolerances requires very precise die making, which can increase costs. The skill of the supplier and budget limits also impact how complex and detailed the final products can be.

Manufacturing Processes

Injection Molding Process

The injection molding process for car parts has several important steps:

1. Mold Preparation: Workers clean and check the mold for dirt or damage. They use mold release agents and control the temperature to help the material flow well.
2. Material Preparation: Makers choose the right resin based on what is needed. They dry and mix resin pellets to get rid of moisture before putting them in the machine hopper.
3. Machine Setup: Operators put the mold in the injection molding machine and align it. They change settings like temperature, pressure, and speed based on product needs.
4. Injection Process: The machine pushes hot plastic into the mold under high pressure. This step needs careful control to prevent mistakes.
5. Cooling Phase: Cooling channels manage the temperature to harden the plastic, stopping shrinkage and warping.
6. Ejection Phase: After cooling, the mold opens, and ejector pins or plates push the solid part out.
7. Post-Processing: Workers check parts for mistakes, trim extra material, and do quality checks.

Automation helps improve accuracy during the injection molding process. Robotic arms do tasks like machine tending and quality checks, ensuring consistent product quality. Automated systems find size errors and surface problems, which is important for keeping high standards in car parts.

Stamping Process

The stamping process in car manufacturing has several main stages:

1. Preparation of Raw Material: Makers uncoil big rolls of sheet metal and cut them into blanks.
2. Feeding Blanks: The blanks go into the stamping press.
3. Stamping Operations: Inside the press, different tasks happen:
   • Blanking: Cutting the outer shape of the part from the sheet.
   • Piercing: Punching holes or openings.
   • Drawing: Stretching the metal into 3D shapes.
   • Bending: Making angles or curves.
   • Forming: Shaping metal into complex designs.

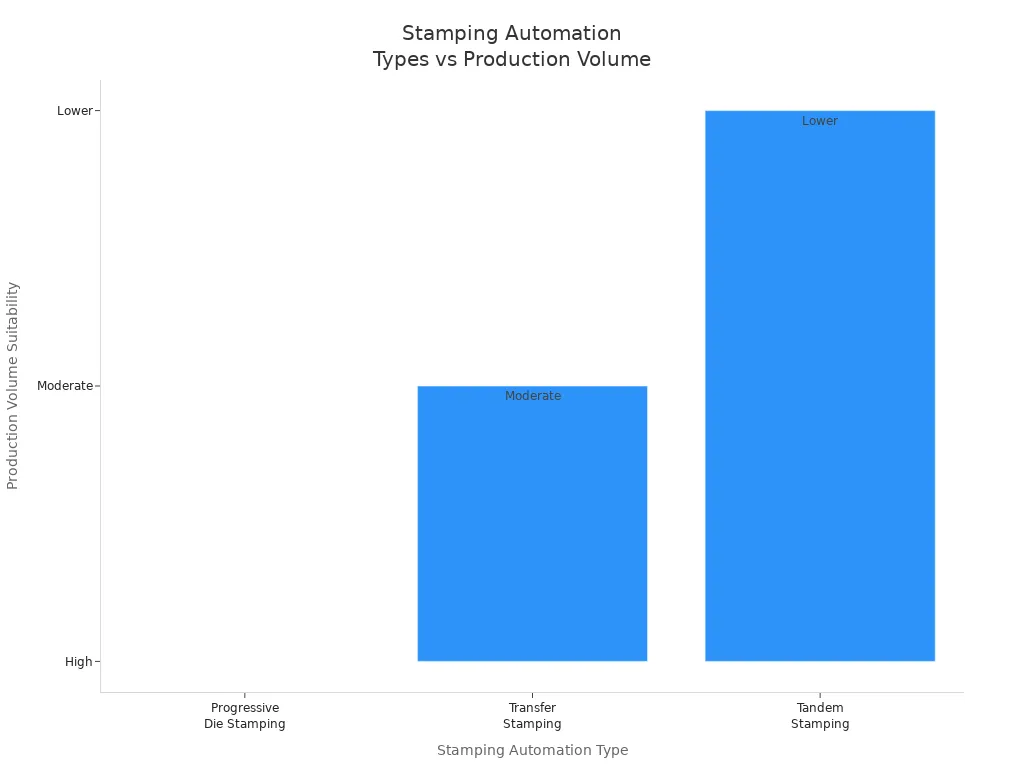

Automation in stamping processes changes based on the application. For example, progressive die stamping is very automated, with fully automated feeding and unloading systems. This method is efficient and works well for small structural car parts. On the other hand, tandem stamping uses robotic arms for loading and unloading, giving flexibility for larger, complex parts but with lower production efficiency.

Overall, both injection molding and stamping processes are very important in making car parts, ensuring high-quality production with precision and efficiency.

Quality Control

Quality in Injection Molding

Quality control in injection molding is very important. It helps make sure that car parts are made well. Manufacturers use different methods to keep quality high during production. Here are some key ways to ensure quality:

• Material Selection & Pre-Production Testing: Manufacturers pick strong, weather-resistant plastics. They also test the raw materials to check for consistency.
• Prototype and Mold Evaluations: Checking the molds and prototypes visually and by size before production helps find problems early.
• Tooling Excellence: Making precise molds in-house helps keep sizes accurate and lowers defects.
• Process Control: Carefully controlling factors like temperature, pressure, injection speed, and cooling time with real-time checks helps avoid issues like warping or flashing.

First Article Inspection (FAI) is another important quality check. This means measuring and inspecting the first parts made using special tools. FAI makes sure that parts meet customer needs and helps avoid defects while following quality rules.

Quality in Stamping

Quality control in stamping also needs to follow strict rules. Car parts made by stamping must meet the IATF 16949 certification. This certification requires careful process control and tracking. Important quality control steps under this certification include Advanced Product Quality Planning (APQP) and Production Part Approval Process (PPAP). These steps ensure that every part made has tight tolerances, sometimes as small as 0.05mm.

Common quality problems in stamping include not using enough blankholder force and not enough lubrication. To fix these, manufacturers follow specific steps:

These steps work together to ensure that stamped car parts are consistently high-quality by controlling materials, tools, machines, processes, environment, and workers.

Choosing the Right Method

Choosing the best way to make car parts involves several important factors. Manufacturers need to think about their specific needs and limits before picking between injection molds and stamping dies. Here are some key points to consider:

• Initial Setup Costs: Injection molds usually need a bigger upfront investment, especially for complex designs. But they can save money for detailed parts over time. Stamping dies typically have lower setup costs, making them better for producing many simple parts.

• Production Volume: The amount of parts needed greatly affects the method choice. Stamping works best for high-volume production, while injection molding is better for smaller, special batches. For example, injection molding is cost-effective for plastic parts made in amounts over 10,000 units each year.

• Part Complexity: Injection molding is great for making detailed plastic parts. On the other hand, stamping is better for large, flat metal parts. Manufacturers should look at how complex the parts are to decide the best method.

• Material Requirements: Different materials can influence the choice of manufacturing method. Injection molding works well with ferrous metals and certain alloys, while stamping is usually for non-ferrous metals. Knowing the material properties can help manufacturers choose the right process.

• Environmental Impact: Sustainability is becoming more important. Injection molding often uses more energy and creates waste, while stamping can use recyclable materials, which may lessen the environmental impact.

• Technological Advancements: Ongoing improvements in manufacturing technology can make both methods more efficient. Keeping up with these advancements can help manufacturers make better choices.

Understanding these factors helps manufacturers pick the right method for their needs. Balancing cost, production volume, and part complexity is key for improving manufacturing processes.

Cost Analysis

Cost analysis is very important for finding the best manufacturing method. Both injection molds and stamping dies need big upfront investments, but their long-term costs can be very different based on several factors.

Both methods need careful thought about tooling and maintenance costs. Injection molds might have lower costs per part in high-volume production, while stamping dies can be cheaper for simpler parts made in large amounts. Manufacturers should look at their production needs and budget limits to make smart choices.

In conclusion, injection molds and stamping dies are both very important in making cars. Each method has its own benefits and challenges. Injection molding is great for making detailed plastic parts with high accuracy. Stamping dies are good at making strong metal parts quickly.

Car makers can improve their production by knowing these differences. For example, they can use injection molds for detailed designs and stamping dies for making many metal parts.

By using the best parts of each method, manufacturers can improve efficiency and quality in making car parts.

FAQ

What is the main difference between injection molding and stamping?

Injection molding makes parts by pushing hot plastic into molds. Stamping shapes metal sheets using special tools called dies. Injection molding works best for detailed plastic parts. Stamping is better for strong metal pieces.

How do manufacturers choose between injection molds and stamping dies?

Manufacturers think about things like how many parts they need, how complex the parts are, what materials to use, and the costs. Stamping is often chosen for making a lot of parts, while injection molding is good for detailed designs.

What are the typical materials used in injection molding?

Common materials for injection molding are polypropylene, ABS, nylon, and polycarbonate. These plastics are strong, durable, and can be used in many car parts.

How does quality control differ between the two methods?

Quality control in injection molding checks for size accuracy and smooth surfaces. In stamping, the focus is on strength and sharp edges. Both methods must follow strict industry rules.

Can both methods be used for the same automotive part?

Yes, both methods can make similar parts. The choice depends on how complex the design is, what materials are needed, and how many parts are required. Manufacturers pick the method that fits their needs best.
